Material

Carbon steel, cast iron

Dimensions

The machine measures 3.6 meters in length, 2 meters in width, and 3.2 meters in height

Weight

The packaged weight is 1900kg (the wooden box weighs about 50kg)

A machine includes 2 packaging boxes, with box A measuring 1.5 meters in length, 1.4 meters in width, and 2.2 meters in height; Packing box B is 1.4 meters long, 85 centimeters wide, and 2.2 meters high (if a crusher is needed: Packing box size: One machine includes 2 packing boxes: 2 packing boxes with the same size: 1.8 * 1.15 * 2.2 * 2=9.1cbm, weight including crusher and accessories for 2 years: 2800kg-3000kg)

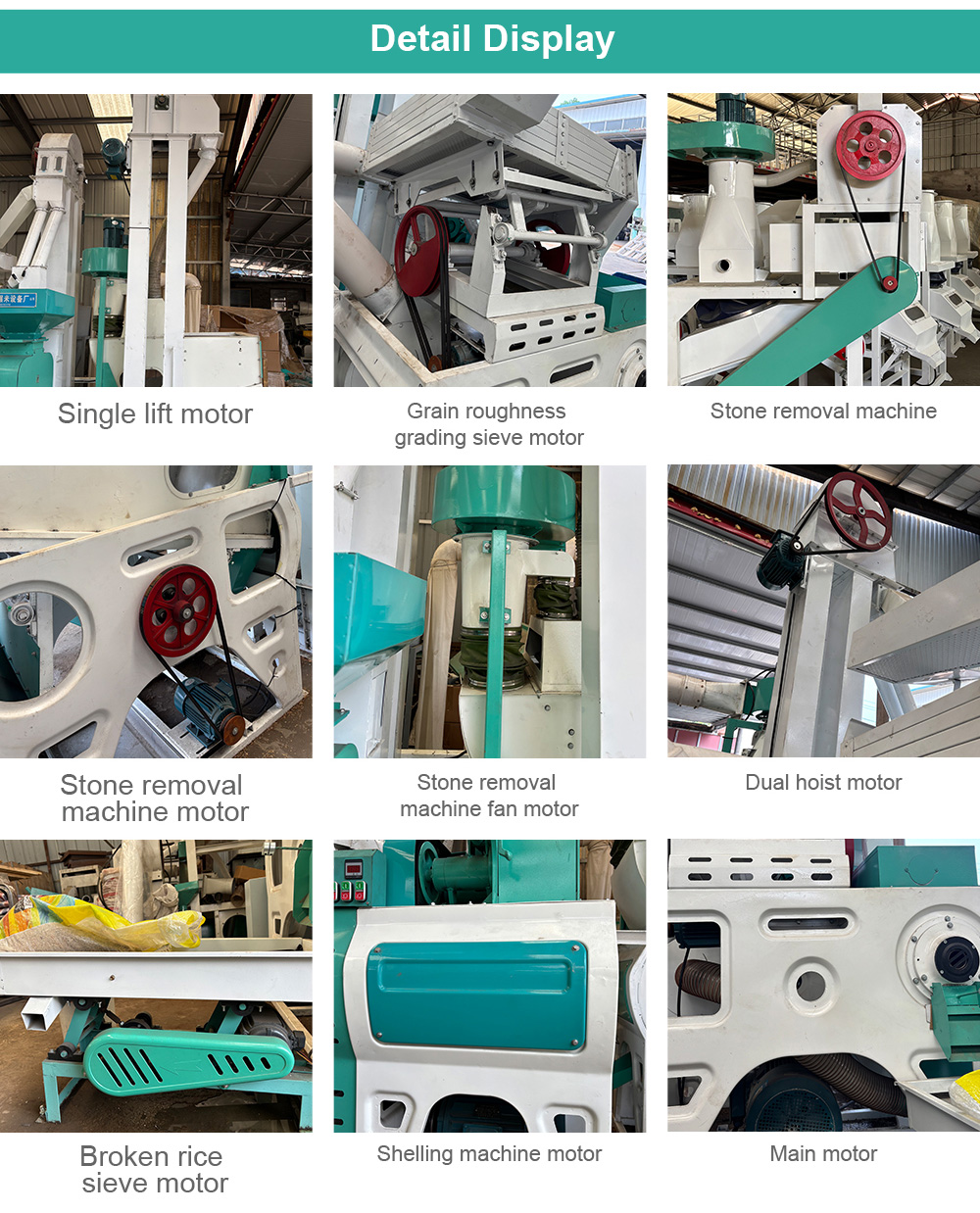

Power

Stone removal machine power: 0.75kw;

Rice huller power: 5.5kw;

Grain roughness separation screen power: 0.75kw;

Main engine power: 15kw;

Double lift machine power: 0.75kw;

Single lift machine power: 0.75kw;

Stone removal machine fan power: 1kw;

Total power is 24.5kw

Production capacity

1000-1200kg/hour

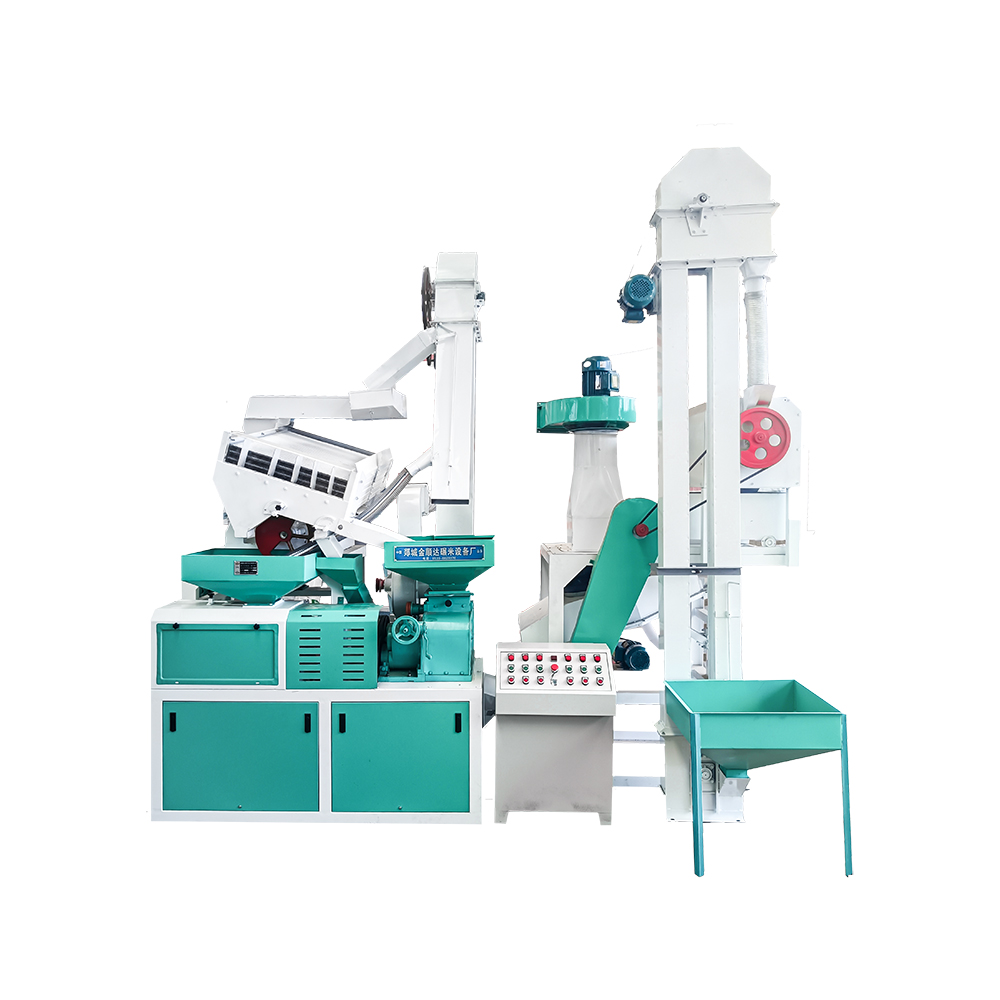

Model

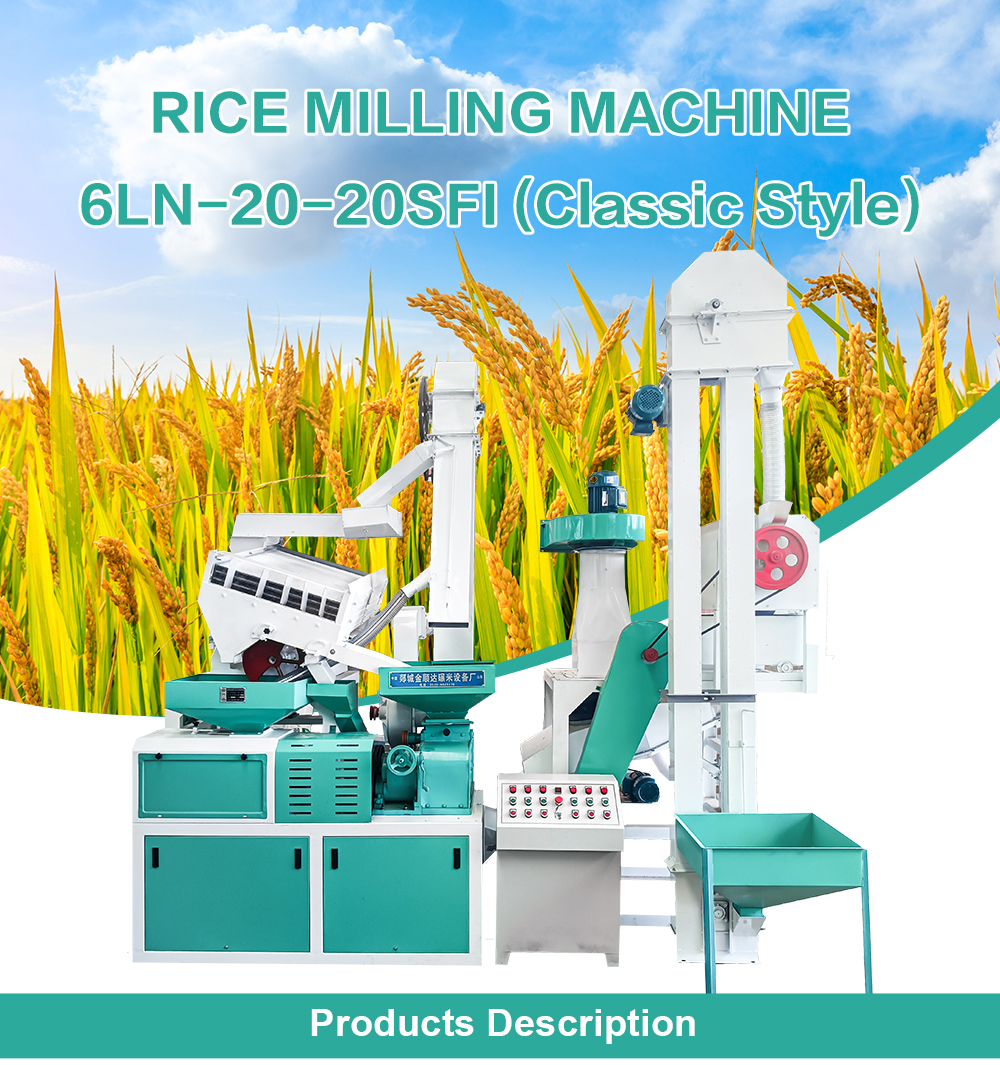

6LN-20-20SFI (Classic Style)

Rice yield rate

70-78%

Broken rice rate:

1.5-3%
