Capacity | 1000-1200 KG /h,20-24Tons/Day |
Core component | Gear Box Motor Engine |
Voltage | 380V 50Hz (You Can Configure It According To Different Regions) |

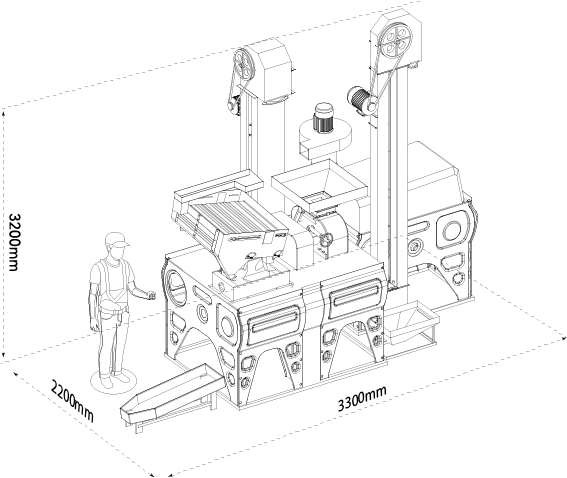

Dimensions (L*W*H) | 3300*2200*3200mm |
Weight | 2100 KG |
Warranty period | 1Year |
Brand | Tancheng County Jinshunda Machinery Factory |
Power (horsepower) | 25kw |
Packaging Details | Wooden case packing |

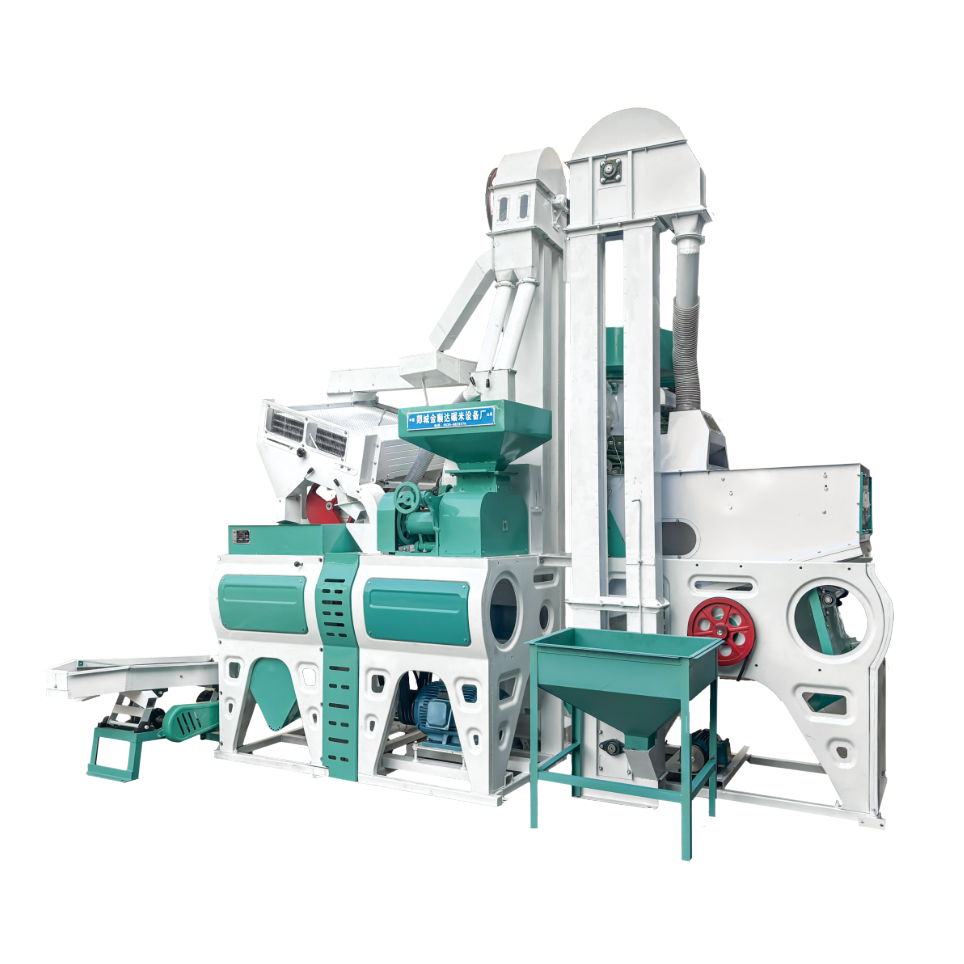

name | 20 type combination rice mill |
Material | Carbon Steel, Cast Iron |
Dimensions | The machine measures 3.2 meters in length, 1.8 meters in width, and 3.2 meters in height |
Weight | The packaged weight is 1700kg (the wooden box weighs about 50kg) A machine includes 2 packaging boxes, with box 1 measuring 1.5 meters in length, 1.4 meters in width, and 2.2 meters in height; Box 2 dimensions: length 1.4 meters, width 85 centimeters, height 2.2 meters. (If a crusher is needed: Packaging box size: One machine includes 2 packaging boxes: 2 packaging boxes have the same size: 1.4 * 1.5 * 2.2 * 2=9.24cbm, weight includes crusher and 2-year accessories: 2600kg-2800kg) |

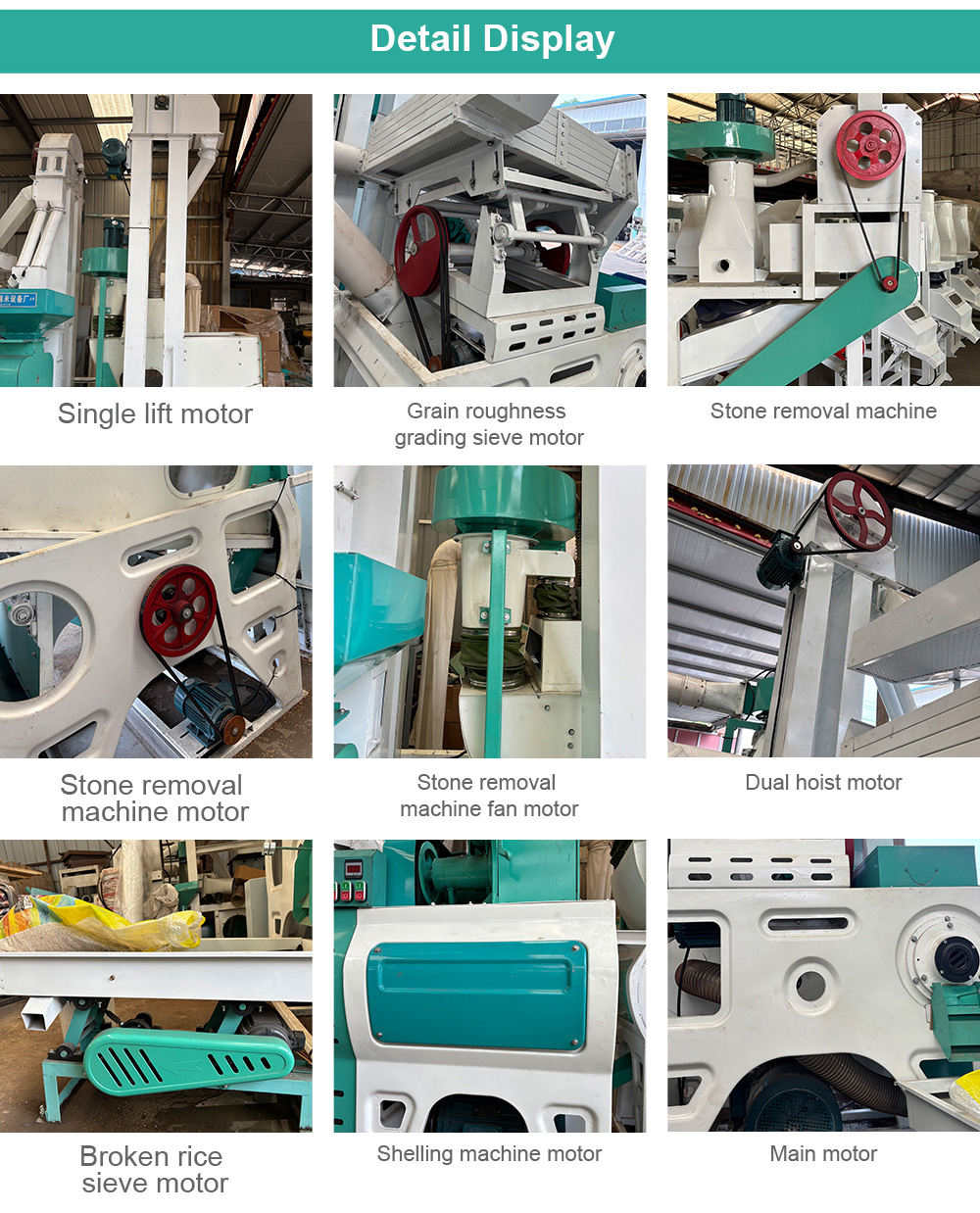

Power | Stone removal machine power: 0.75kw; Rice huller power: 5.5kw; Grain roughness separation screen power: 0.75kw; Main engine power: 15kw; Double lift machine power: 0.75kw; Single lift machine power: 0.75kw; Stone removal machine fan power: 1kw; Total power is 24.5kw |
Production capacity | 1000-1200kg/hour |
Model | 6LN-20-20SFI (latest model in 2025) |
Rice yield rate | 70-78%; |
Broken rice rate: | 1.5-3% |
